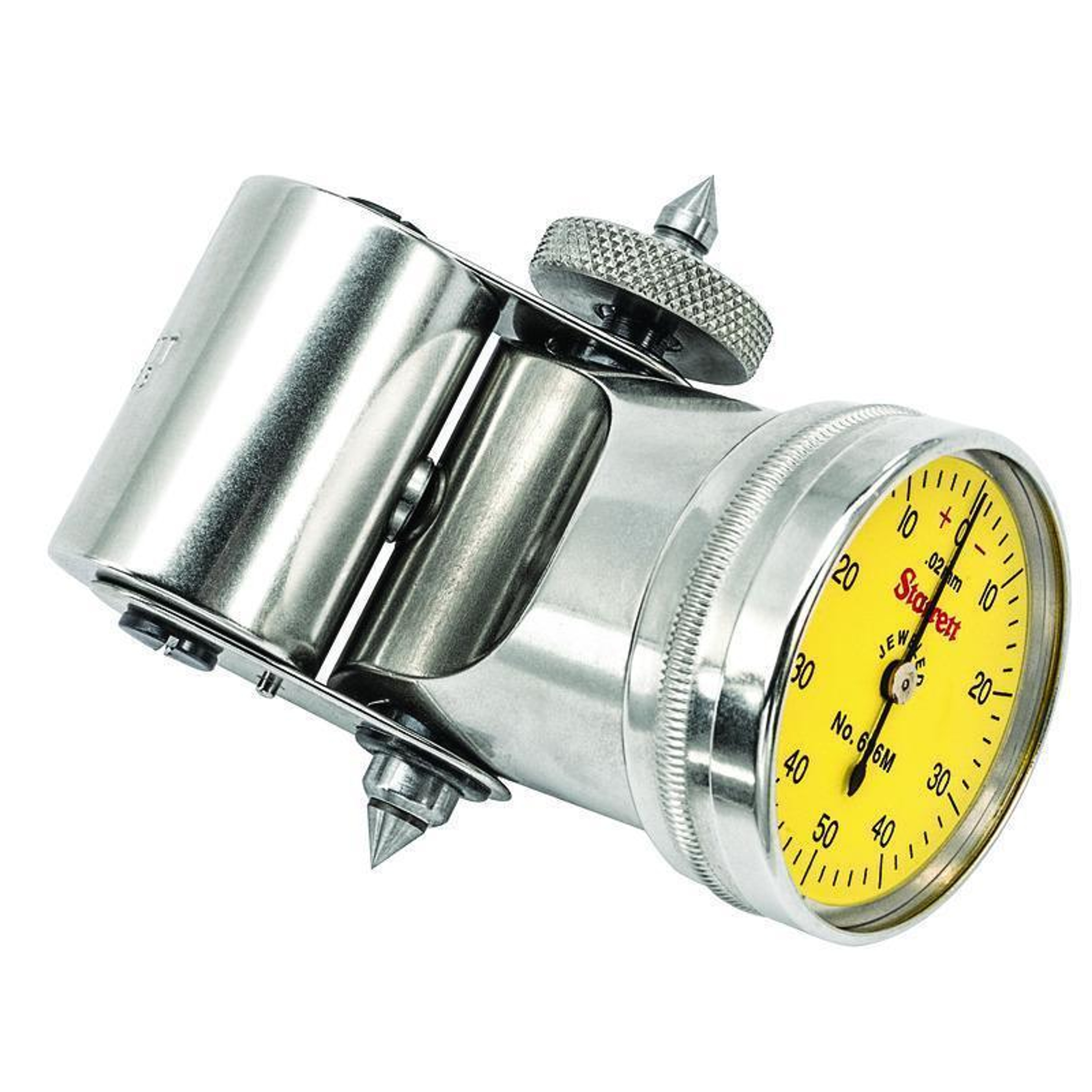

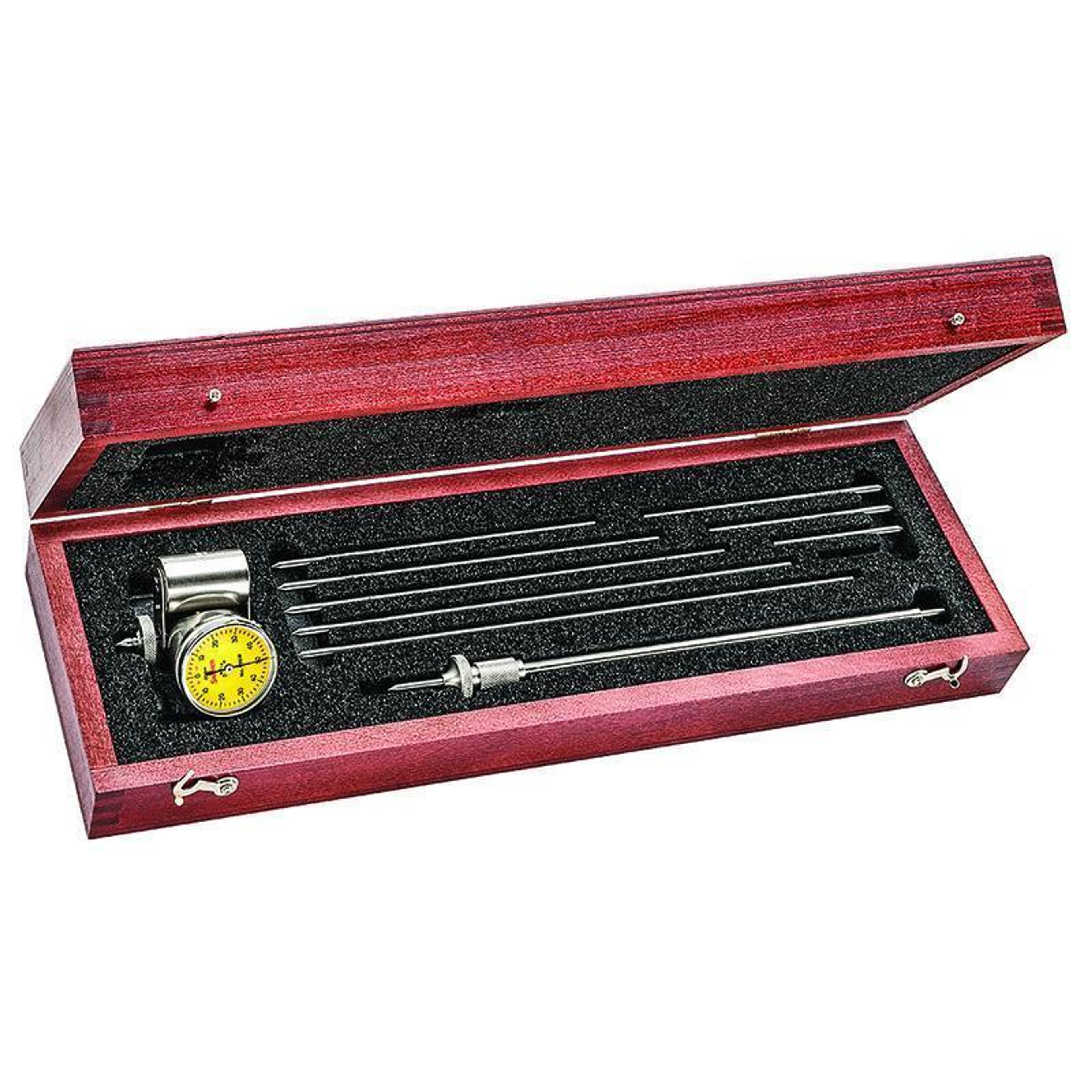

Starrett® 696MZ Distortion Dial/Strain Gage With Balancing Attachment, 61 to 458 mm, 0 to 50 to 0 Dial Reading, 0.02 mm, 1-29/64 in Dial, 3/16 in Tip

Starrett® Dial/Strain Gage, Distortion, 61 to 458 mm, 0 to 50 to 0 Dial, Graduations: 0.02 mm, 1-29/64 in Dial, 3/16 in Tip

Ideal gage for checking bearing alignment or shaft deflection without dismantling the engine. Also useful as a strain gage on engine frames. This inside measuring gage checks the distortion of crankshaft webs and bears a direct relation to existing misalignment or excessive bearing wear. Used on all diesel engine shafts and center crankshafts on any type of engine or compressor, the gage can also be applied as a strain gage on engine frames while the engine is operating. A comparison of readings taken at top and bottom positions indicates any misalignment of cylinder and frame which results in local over-stress and eventual cracking of the frame neck.
