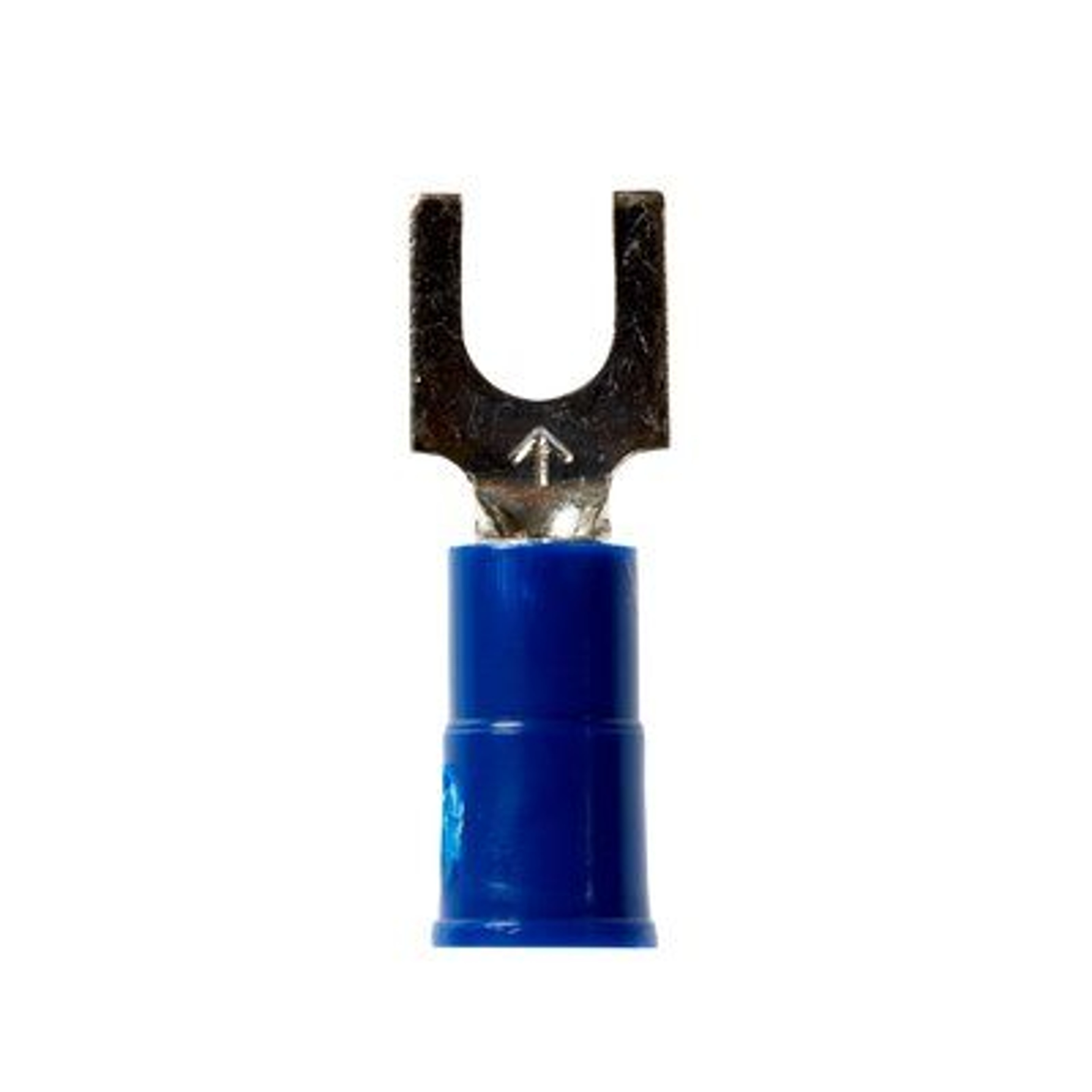

Scotchlok 7000133326 Insulated Block Fork, 16 to 14 AWG Conductor, 0.85 in L, Brazed Seam Barrel, Electrolytic Copper/Vinyl, Blue

Scotchlok, 7010297495, Block Fork, Non-Insulated, 16 to 14 AWG Conductor, #6 Stud, 0.65 in Length, Brazed Seam Barrel, 0.09 in ID x 0.25 in L Barrel, Fork Tongue, 0.3 in W x 0.03 in THK Tongue, 600 to 1000 VAC, Specifications: 1/4 in Clearance, 347 deg F, Electrolytic Copper, Tin Plated

3M Scotchlok block fork terminal has a non insulated, silver brazed seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts.
