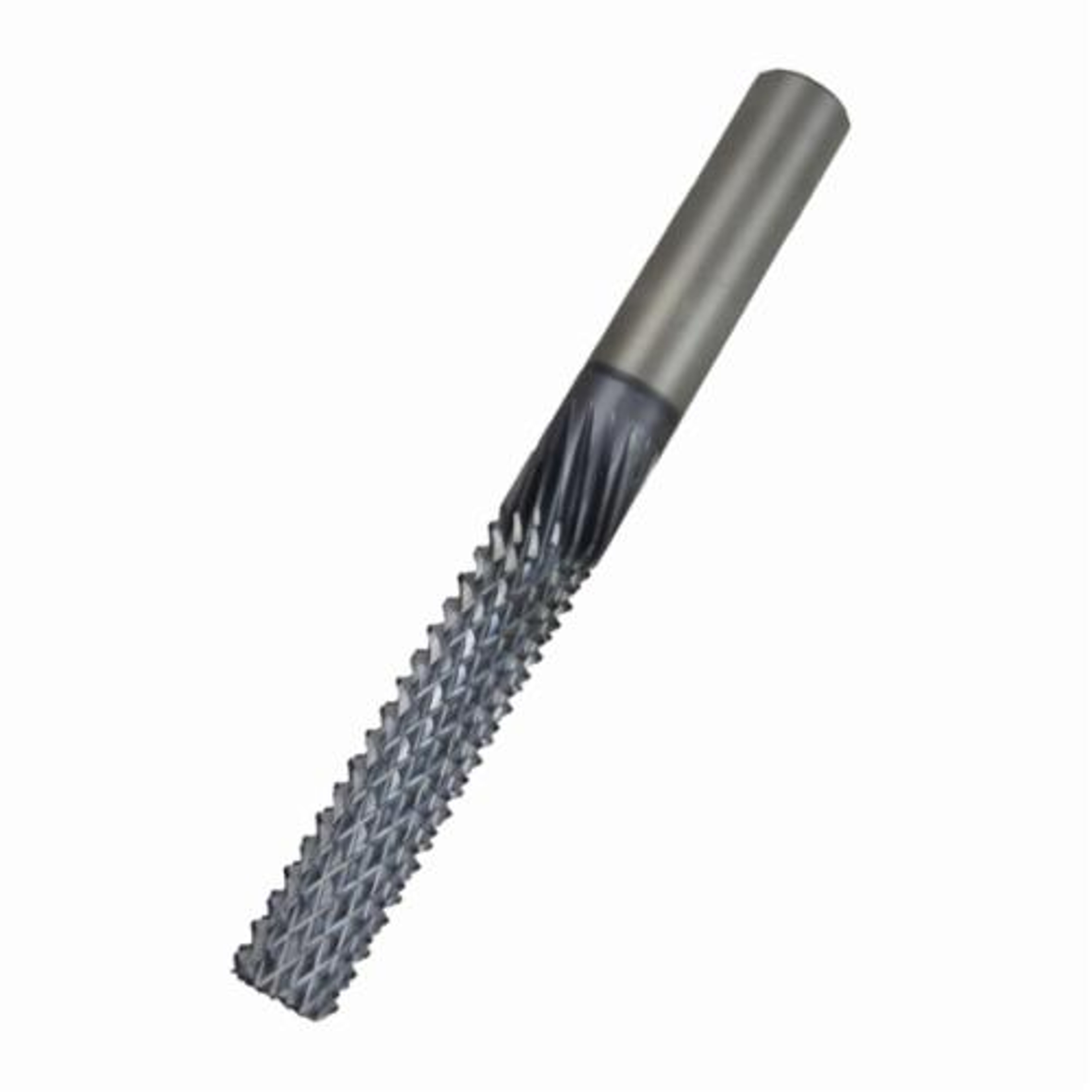

LMT Onsrud 66-902ALTIN 66-900 High Performance Multi-Flute Composite Router, 1/8 in Dia Cutting, Burr End, 1-1/2 in OAL, 1/2 in D Cutting, 1/8 in Dia Shank, Solid Carbide

LMT Onsrud Composite Router, High Performance Multi-Flute, Series: 66-900, 1/8 in Cutting Dia, Burr, 1-1/2 in Overall Length, 1/2 in Cutting Depth, 1/8 in Shank Dia, Solid Carbide, ESG Coated

The new high performance composite router is designed for more efficient routing of composite materials, in both hand-fed and in CNC applications. Conventional composite routing tools, commonly referred to as “burrs" have a diamond tooth pattern that produces a grinding action more than a cutting action. Therefore, the conventional tools generate large amounts of heat resulting in premature tool failure. The new high performance composite router is a true cutting tool. It cuts the material into distinct chips which remove heat from the cut. Deep cutting flutes increase the chip-flow and aids in dissipating heat resulting in longer tool life. The geometry produces a smooth edge on the material, eliminating secondary operations. In a hand router application, the geometry reduces the cutting force required by the operator. In a CNC router application, higher speeds and feeds can be achieved, increasing productivity and lowering costs.
