Corner Radius & Corner Chamfer End Mills

Corner radius end mills, with their square nose and slightly rounded corners, are essential for achieving smooth transitions and reducing tool wear in your projects. These tools enhance performance by minimizing chipping and extending tool life, making them ideal for high-speed machining. On the other hand, corner chamfer end mills, featuring an angled cutting edge, are perfect for milling shoulders that require a chamfered corner, ensuring precision and clean finishes. Both types are indispensable for industrial workers seeking efficiency and reliability in their machining tasks.

Sort By

Titan USA TC74128 Regular Flute Single End End Mill With Internal Coolant, 5/16 in Dia Cutter, 0.02 in Corner Radius, 13/16 in Length of Cut, 4 Flutes, 5/16 in Dia Shank, 2-1/2 in OAL, AlTiN CoatedTitan USA$38.25

Titan USA TC72057 720 General Purpose End Mill, 0.5 in Dia Cutter, 0.125 in Corner Radius, 1 in Length of Cut, (2) Flutes, 0.5 in Dia Shank, 3 in OAL, UncoatedTitan USA$57.95

Titan USA TC72013 720 General Purpose End Mill, 0.1875 in Dia Cutter, 0.03 in Corner Radius, 0.625 in Length of Cut, (2) Flutes, 0.1875 in Dia Shank, 2 in OAL, UncoatedTitan USA$14.40

Titan USA TC71977 719 General Purpose End Mill, 0.25 in Dia Cutter, 0.06 in Corner Radius, 1.5 in Length of Cut, (2) Flutes, 0.25 in Dia Shank, 4 in OAL, UncoatedTitan USA$31.10

Titan USA TC71969 719 General Purpose End Mill, 0.25 in Dia Cutter, 0.01 in Corner Radius, 1.5 in Length of Cut, (2) Flutes, 0.25 in Dia Shank, 4 in OAL, UncoatedTitan USA$31.10

Titan USA TC71953 719 General Purpose End Mill, 0.125 in Dia Cutter, 0.01 in Corner Radius, 0.5 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$13.20

Titan USA TC73848 738 General Purpose End Mill, 0.5 in Dia Cutter, 0.02 in Corner Radius, 0.625 in Length of Cut, (4) Flutes, 0.5 in Dia Shank, 2.5 in OAL, UncoatedTitan USA$45.65

Titan USA TC73854 738 General Purpose End Mill, 0.5 in Dia Cutter, 0.06 in Corner Radius, 0.625 in Length of Cut, (4) Flutes, 0.5 in Dia Shank, 2.5 in OAL, UncoatedTitan USA$45.65

Titan USA TC73847 738 General Purpose End Mill, 0.375 in Dia Cutter, 0.125 in Corner Radius, 0.625 in Length of Cut, (4) Flutes, 0.375 in Dia Shank, 2 in OAL, UncoatedTitan USA$30.95

Titan USA TC72045 720 General Purpose End Mill, 0.5 in Dia Cutter, 0.015 in Corner Radius, 1 in Length of Cut, (2) Flutes, 0.5 in Dia Shank, 3 in OAL, UncoatedTitan USA$57.95

Titan USA TC72053 720 General Purpose End Mill, 0.5 in Dia Cutter, 0.06 in Corner Radius, 1 in Length of Cut, (2) Flutes, 0.5 in Dia Shank, 3 in OAL, UncoatedTitan USA$57.95

Titan USA TC72033 720 General Purpose End Mill, 0.3125 in Dia Cutter, 0.06 in Corner Radius, 0.8125 in Length of Cut, (2) Flutes, 0.3125 in Dia Shank, 2.5 in OAL, UncoatedTitan USA$30.35

Titan USA TC73818 738 General Purpose End Mill, 0.25 in Dia Cutter, 0.02 in Corner Radius, 0.5 in Length of Cut, (4) Flutes, 0.25 in Dia Shank, 2 in OAL, UncoatedTitan USA$19.25

Titan USA TC72011 720 General Purpose End Mill, 0.1875 in Dia Cutter, 0.02 in Corner Radius, 0.625 in Length of Cut, (2) Flutes, 0.1875 in Dia Shank, 2 in OAL, UncoatedTitan USA$14.40

Titan USA TC73811 738 General Purpose End Mill, 0.1875 in Dia Cutter, 0.01 in Corner Radius, 0.375 in Length of Cut, (4) Flutes, 0.1875 in Dia Shank, 2 in OAL, UncoatedTitan USA$15.05

Titan USA TC73809 738 General Purpose End Mill, 0.1875 in Dia Cutter, 0.005 in Corner Radius, 0.375 in Length of Cut, (4) Flutes, 0.1875 in Dia Shank, 2 in OAL, UncoatedTitan USA$15.05

Titan USA TC71976 719 General Purpose End Mill, 0.25 in Dia Cutter, 0.06 in Corner Radius, 0.5 in Length of Cut, (2) Flutes, 0.25 in Dia Shank, 2 in OAL, UncoatedTitan USA$19.25

Titan USA TC71975 719 General Purpose End Mill, 0.25 in Dia Cutter, 0.03 in Corner Radius, 1.5 in Length of Cut, (2) Flutes, 0.25 in Dia Shank, 4 in OAL, UncoatedTitan USA$31.10

Titan USA TC71971 719 General Purpose End Mill, 0.25 in Dia Cutter, 0.015 in Corner Radius, 1.5 in Length of Cut, (2) Flutes, 0.25 in Dia Shank, 4 in OAL, UncoatedTitan USA$31.10

Titan USA TC71968 719 General Purpose End Mill, 0.25 in Dia Cutter, 0.01 in Corner Radius, 0.75 in Length of Cut, (2) Flutes, 0.25 in Dia Shank, 2.5 in OAL, UncoatedTitan USA$19.75

Titan USA TC71961 719 General Purpose End Mill, 0.1875 in Dia Cutter, 0.015 in Corner Radius, 0.375 in Length of Cut, (2) Flutes, 0.1875 in Dia Shank, 2 in OAL, UncoatedTitan USA$15.05

Titan USA TC71956 719 General Purpose End Mill, 0.125 in Dia Cutter, 0.03 in Corner Radius, 0.25 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$9.60

Titan USA TC73849 738 General Purpose End Mill, 0.5 in Dia Cutter, 0.01 in Corner Radius, 0.625 in Length of Cut, (4) Flutes, 0.5 in Dia Shank, 2.5 in OAL, UncoatedTitan USA$45.65

Titan USA TC73835 738 General Purpose End Mill, 0.375 in Dia Cutter, 0.01 in Corner Radius, 0.625 in Length of Cut, (4) Flutes, 0.375 in Dia Shank, 2 in OAL, UncoatedTitan USA$30.95

Titan USA TC73832 738 General Purpose End Mill, 0.3125 in Dia Cutter, 0.045 in Corner Radius, 0.5 in Length of Cut, (4) Flutes, 0.3125 in Dia Shank, 2 in OAL, UncoatedTitan USA$23.95

Titan USA TC73820 738 General Purpose End Mill, 0.25 in Dia Cutter, 0.03 in Corner Radius, 0.5 in Length of Cut, (4) Flutes, 0.25 in Dia Shank, 2 in OAL, UncoatedTitan USA$19.25

Titan USA TC73814 738 General Purpose End Mill, 0.1875 in Dia Cutter, 0.03 in Corner Radius, 0.375 in Length of Cut, (4) Flutes, 0.1875 in Dia Shank, 2 in OAL, UncoatedTitan USA$15.05

Titan USA TC72043 720 General Purpose End Mill, 0.375 in Dia Cutter, 0.06 in Corner Radius, 1 in Length of Cut, (2) Flutes, 0.375 in Dia Shank, 2.5 in OAL, UncoatedTitan USA$36.00

Titan USA TC71990 719 General Purpose End Mill, 0.5 in Dia Cutter, 0.125 in Corner Radius, 2 in Length of Cut, (2) Flutes, 0.5 in Dia Shank, 4 in OAL, UncoatedTitan USA$72.95

Titan USA TC66464 664 General Purpose End Mill, 1 in Dia Cutter, 0.04 in Corner Radius, 2.25 in Length of Cut, (3) Flutes, 1 in Dia Shank, 5 in OAL, UncoatedTitan USA$434.55

Titan USA TC66440 664 General Purpose End Mill, 0.625 in Dia Cutter, 0.04 in Corner Radius, 2.375 in Length of Cut, (3) Flutes, 0.625 in Dia Shank, 5 in OAL, UncoatedTitan USA$255.45

Titan USA TC66432 664 General Purpose End Mill, 0.5 in Dia Cutter, 0.04 in Corner Radius, 2 in Length of Cut, (3) Flutes, 0.5 in Dia Shank, 4 in OAL, UncoatedTitan USA$119.55

GARR 41783 143M Center Cutting High Performance Single End Standard Length End Mill, 3/8 in Dia Cutter, 1/2 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 6 in OAL, Alumastar® CoatedGARR$106.95

GARR 27801 VRX Center Cutting High Performance Single End Mill, 5/8 in Dia Cutter, 0.025 in Corner Radius, 1-1/4 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3-1/2 in OAL, AlTiN/X.CEED CoatedGARR$105.58

GARR 27769 VRX Center Cutting High Performance Single End Mill, 1/2 in Dia Cutter, 0.12 in Corner Radius, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3 in OAL, AlTiN/X.CEED CoatedGARR$66.32

GARR 63640 VRX Center Cutting High Performance End Mill, 3/4 in Dia Cutter, 0.06 in Corner Radius, 2 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 5 in OAL, AlTiN/X.CEED CoatedGARR$210.01

GARR 63530 VRX Center Cutting High Performance End Mill, 5/8 in Dia Cutter, 0.01 in Corner Radius, 1-3/4 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 4 in OAL, AlTiN/X.CEED CoatedGARR$114.77

GARR 27805 VRX Center Cutting High Performance Single End Mill, 5/8 in Dia Cutter, 0.12 in Corner Radius, 1-1/4 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3-1/2 in OAL, AlTiN/X.CEED CoatedGARR$105.58

GARR 27781 VRX Center Cutting High Performance Single End Mill, 5/8 in Dia Cutter, 0.025 in Corner Radius, 3/4 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3 in OAL, AlTiN/X.CEED CoatedGARR$102.73

Titan USA TC62366 623 General Purpose End Mill, 0.1875 in Dia Cutter, 0.02 in Corner Radius, 0.375 in Length of Cut, (2) Flutes, 0.1875 in Dia Shank, 2 in OAL, UncoatedTitan USA$21.10

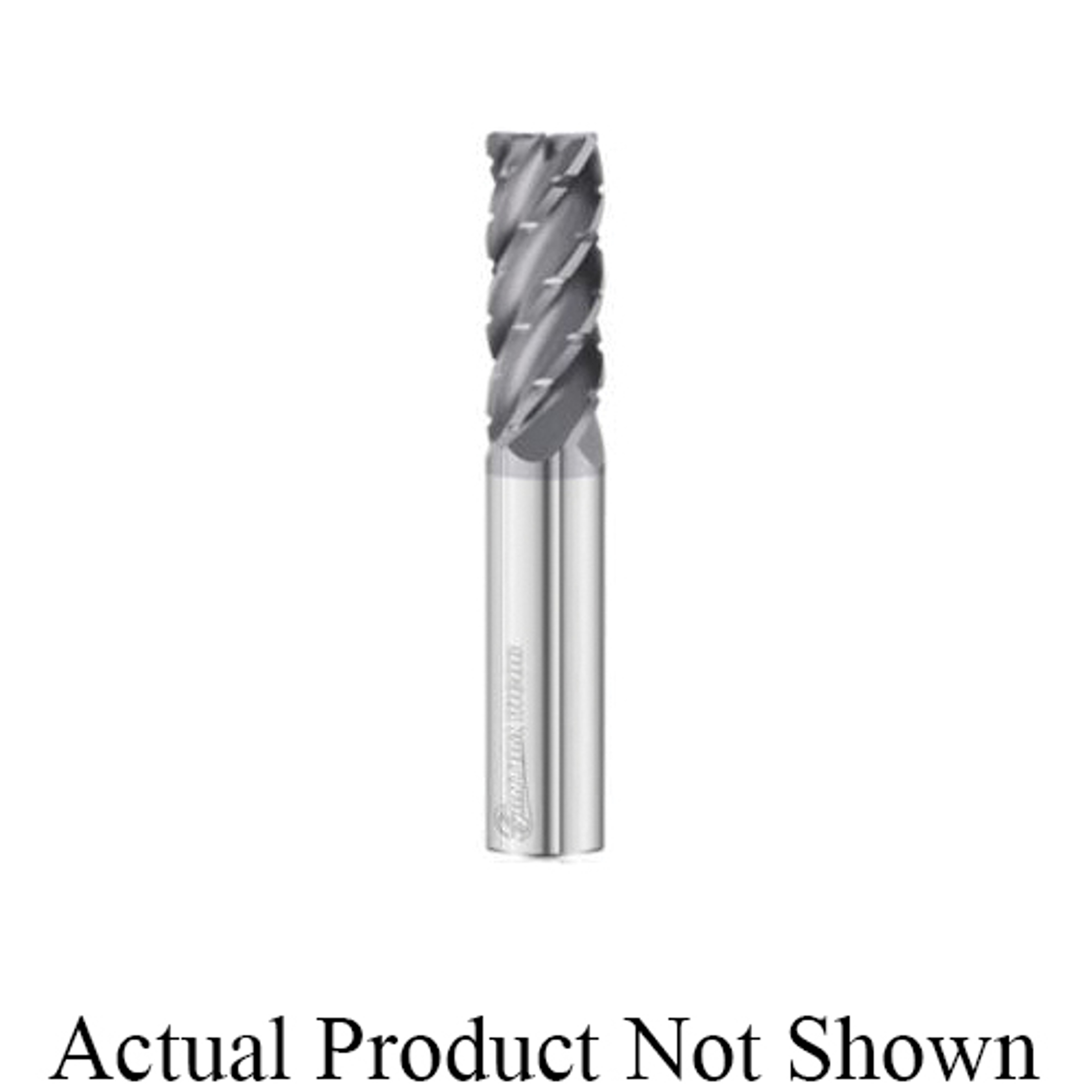

Fullerton Fantom Vicor 34880 3415 Advanced Performance Center Cutting Single End Standard Length End Mill With Chipbreaker, 1/2 in Dia Cutter, 0.02 in Corner Radius, 2 in Length of Cut, 5 Flutes, 1/2 in Dia Shank, 4 in OAL, FC-20 CoatedFullerton$119.65

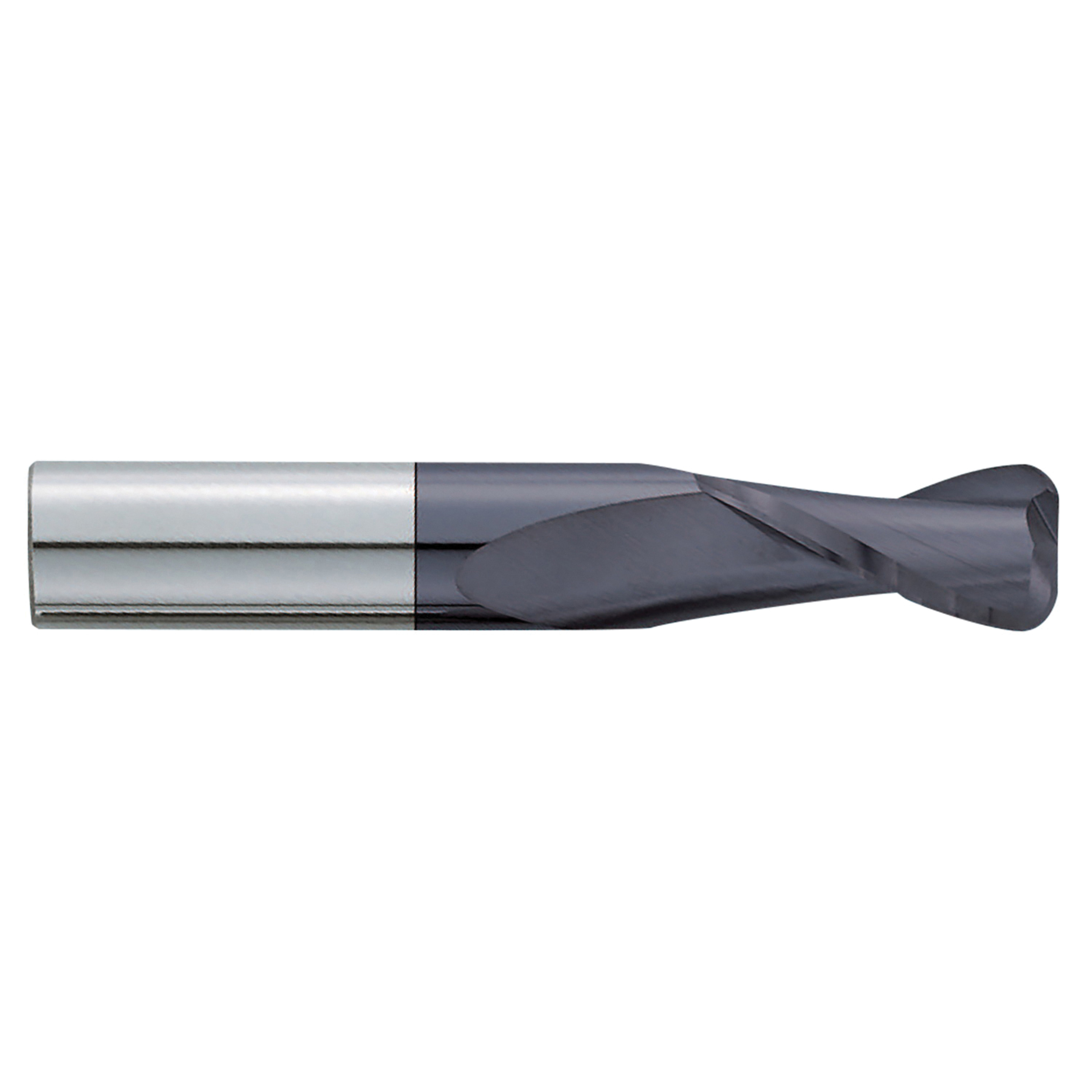

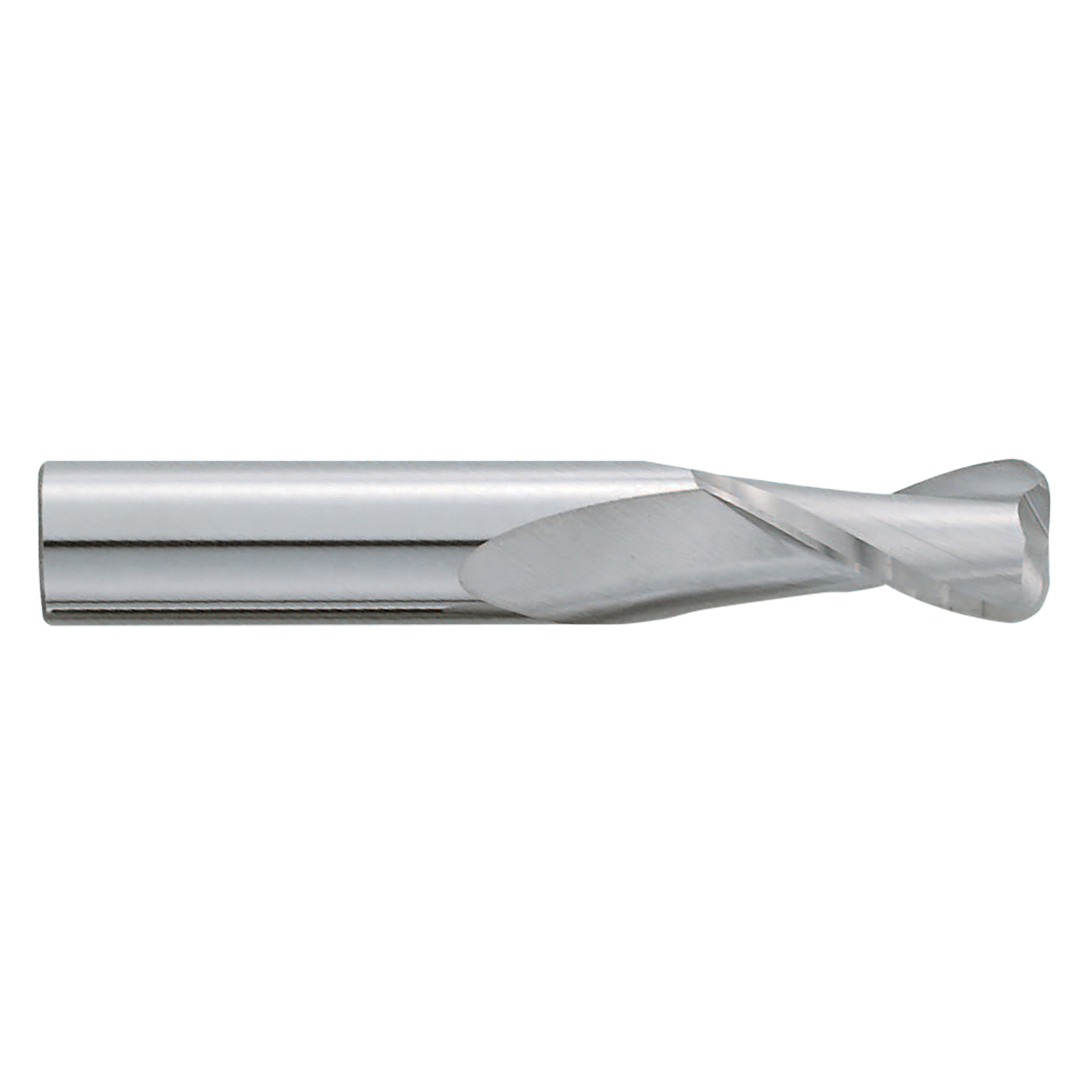

GARR 79340 220R Center Cutting Single End Standard Length End Mill, 1/2 in Dia Cutter, 0.06 in Corner Radius, 1 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3 in OAL, UncoatedGARR$56.83

GARR 79367 220RA Center Cutting Single End Standard Length End Mill, 1/2 in Dia Cutter, 1/8 in Corner Radius, 1 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3 in OAL, TiAlN CoatedGARR$66.32

GARR 79347 220RA Center Cutting Single End Standard Length End Mill, 1/2 in Dia Cutter, 0.06 in Corner Radius, 1 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3 in OAL, TiAlN CoatedGARR$66.32

GARR 79327 220RA Center Cutting Single End Standard Length End Mill, 1/2 in Dia Cutter, 0.03 in Corner Radius, 1 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3 in OAL, TiAlN CoatedGARR$66.32

GARR 79317 220RA Center Cutting Single End Standard Length End Mill, 1/2 in Dia Cutter, 0.02 in Corner Radius, 1 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3 in OAL, TiAlN CoatedGARR$66.32

Titan USA TC40711 407 General Purpose End Mill, 0.1875 in Dia Cutter, 0.01 in Corner Radius, 0.375 in Length of Cut, (3) Flutes, 0.1875 in Dia Shank, 2 in OAL, UncoatedTitan USA$20.30

Titan USA TC49722 497 General Purpose End Mill, 0.375 in Dia Cutter, 0.02 in Corner Radius, 0.625 in Length of Cut, (3) Flutes, 0.375 in Dia Shank, 2 in OAL, AlTiNTitan USA$44.75

Titan USA TC50135 501 Stub & Regular Flute Micro End Mill, 0.093 in Dia Cutter, 0.005 in Corner Radius, 0.14 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.85

Titan USA TC50130 501 Stub & Regular Flute Micro End Mill, 0.078 in Dia Cutter, 0.01 in Corner Radius, 0.117 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.85

Choosing the Right Corner Radius & Corner Chamfer End Mills

When it comes to precision milling, selecting the right end mill is crucial for achieving the desired finish and performance. Corner radius end mills and corner chamfer end mills are essential tools for machinists and manufacturers who need to create smooth, rounded edges or chamfered corners on their workpieces. Understanding the differences and applications of these tools will help you make an informed purchasing decision.

Corner radius end mills have a square nose with slightly rounded corners, which helps in reducing chipping and extending tool life. They are ideal for applications that require a smooth transition between the tool and the workpiece. On the other hand, corner chamfer end mills feature an angled cutting edge, making them perfect for milling shoulders that require a chamfered corner. These tools are essential for creating beveled edges and ensuring a clean finish.

Material Compatibility: Ensure the end mill is suitable for the material you are working with, such as steel, aluminum, or composites.
Tool Coating: Consider coatings like TiN, TiCN, or AlTiN for enhanced durability and performance.
Corner Radius or Chamfer Size: Choose the appropriate size based on the specific requirements of your project.
Flute Count: More flutes can provide a smoother finish, while fewer flutes offer better chip clearance.
Shank Diameter: Match the shank diameter to your machine's collet or chuck for optimal stability.
Overall Length: Ensure the tool's length is suitable for the depth of cut required.

By considering these factors, you can select the right corner radius or corner chamfer end mill for your specific needs. Whether you're working on a complex project or a simple task, having the right tool will ensure precision and efficiency.

Ready to enhance your milling operations? Explore our wide selection of corner radius and corner chamfer end mills today and find the perfect tool for your next project. Shop Now and experience the difference in quality and performance.
