Corner Radius & Corner Chamfer End Mills

Corner radius end mills, with their square nose and slightly rounded corners, are essential for achieving smooth transitions and reducing tool wear in your projects. These tools enhance performance by minimizing chipping and extending tool life, making them ideal for high-speed machining. On the other hand, corner chamfer end mills, featuring an angled cutting edge, are perfect for milling shoulders that require a chamfered corner, ensuring precision and clean finishes. Both types are indispensable for industrial workers seeking efficiency and reliability in their machining tasks.

Sort By

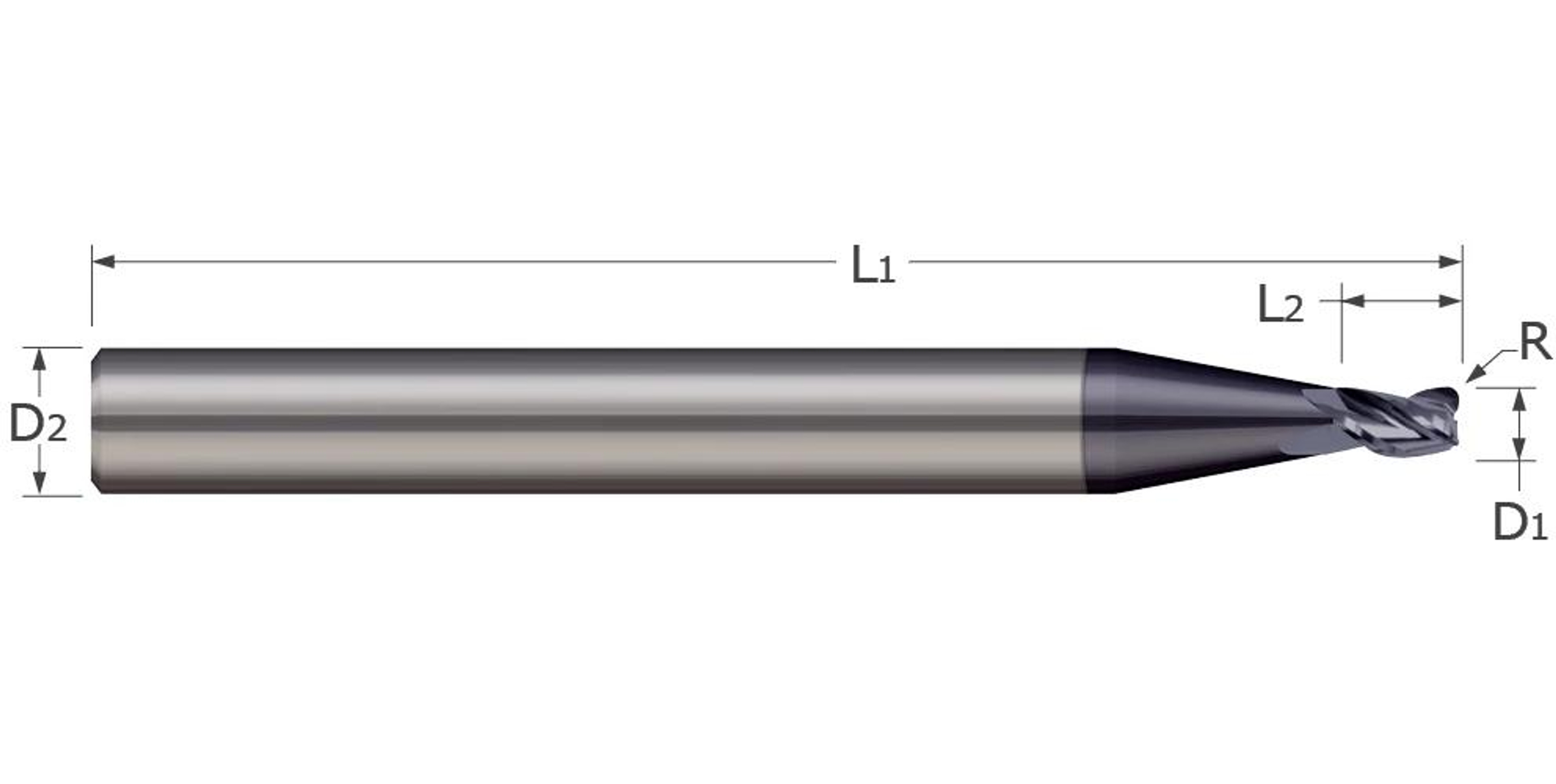

MICRO 100 MEF-050-075-010K Stub Flute Corner Radius End Mill, 0.05 in Dia Cutter, 0.01 in Corner Radius, 0.075 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, NACROMICRO 100$35.70

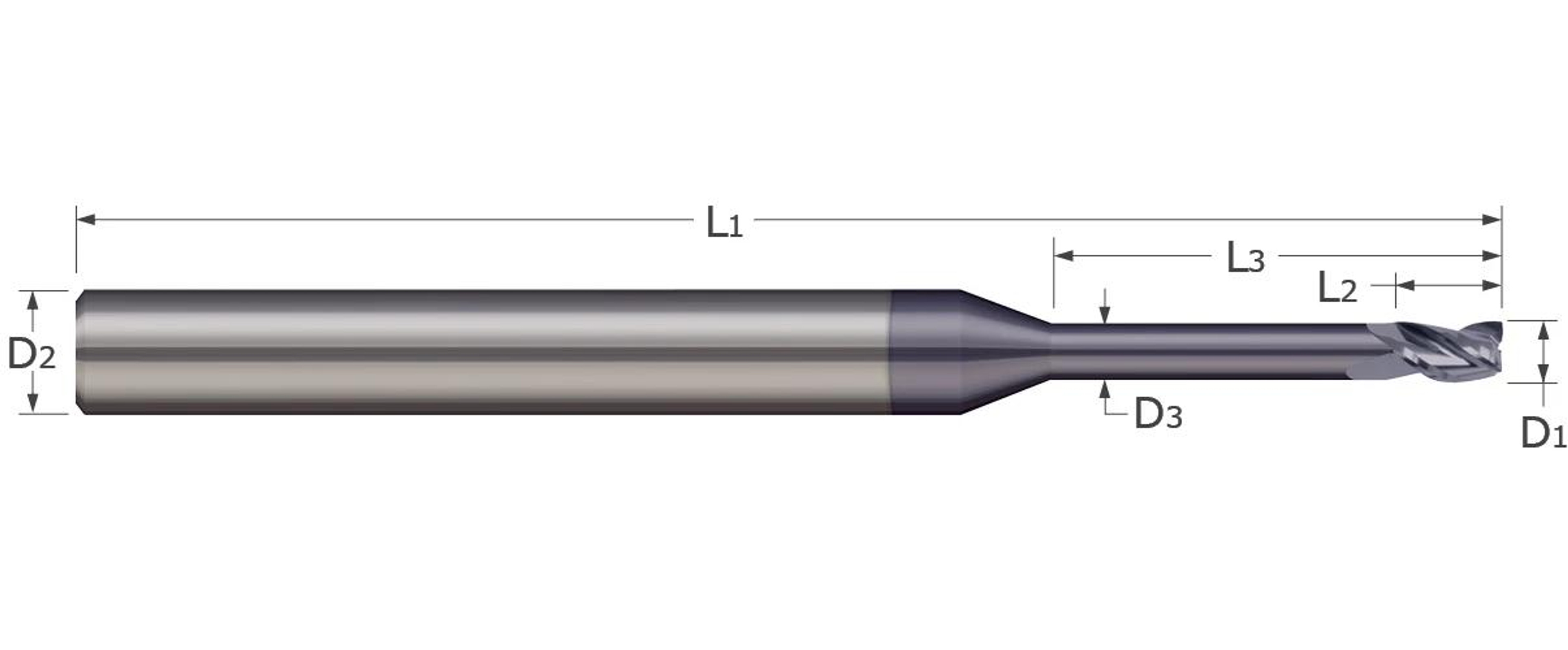

MICRO 100 MEF-047-250-3-010 Long Reach - Stub Flute Corner Radius End Mill, 0.0469 in Dia Cutter, 0.01 in Corner Radius, 0.071 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedMICRO 100$38.60

MICRO 100 MEF-047-250-010 Long Reach - Stub Flute Corner Radius End Mill, 0.0469 in Dia Cutter, 0.01 in Corner Radius, 0.071 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedMICRO 100$38.60

MICRO 100 MEF-050-075-005 Stub Flute Corner Radius End Mill, 0.05 in Dia Cutter, 0.005 in Corner Radius, 0.075 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedMICRO 100$31.30

MICRO 100 MEF-047-250-005 Long Reach - Stub Flute Corner Radius End Mill, 0.0469 in Dia Cutter, 0.005 in Corner Radius, 0.071 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedMICRO 100$38.60

MICRO 100 MEF-047-150-3-010K Long Reach - Stub Flute Corner Radius End Mill, 0.0469 in Dia Cutter, 0.01 in Corner Radius, 0.071 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, NACROMICRO 100$41.80

MICRO 100 MEF-047-150-3-005K Long Reach - Stub Flute Corner Radius End Mill, 0.0469 in Dia Cutter, 0.005 in Corner Radius, 0.071 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, NACROMICRO 100$41.80

MICRO 100 MEF-050-200-010K Long Reach - Stub Flute Corner Radius End Mill, 0.05 in Dia Cutter, 0.01 in Corner Radius, 0.075 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, NACROMICRO 100$41.80

MICRO 100 MEF-050-075-3-010K Stub Flute Corner Radius End Mill, 0.05 in Dia Cutter, 0.01 in Corner Radius, 0.075 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, NACROMICRO 100$35.95

MICRO 100 MEF-050-075-3-005K Stub Flute Corner Radius End Mill, 0.05 in Dia Cutter, 0.005 in Corner Radius, 0.075 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, NACROMICRO 100$35.70

MICRO 100 MEF-047-250-3-010K Long Reach - Stub Flute Corner Radius End Mill, 0.0469 in Dia Cutter, 0.01 in Corner Radius, 0.071 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, NACROMICRO 100$43.00

MICRO 100 MEF-047-150-3-010 Long Reach - Stub Flute Corner Radius End Mill, 0.0469 in Dia Cutter, 0.01 in Corner Radius, 0.071 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedMICRO 100$37.40

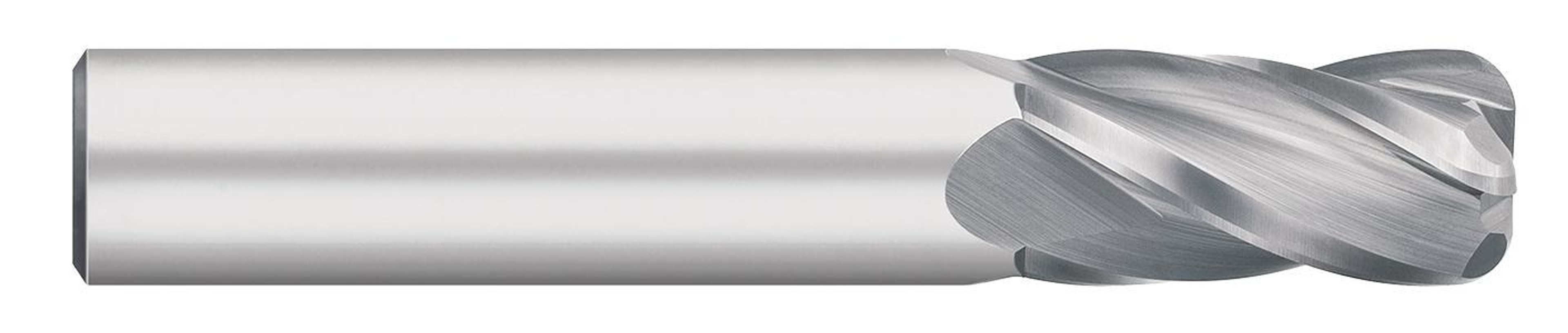

Titan USA TC74029 740 General Purpose End Mill, 0.3125 in Dia Cutter, 0.03 in Corner Radius, 0.8125 in Length of Cut, (4) Flutes, 0.3125 in Dia Shank, 2.5 in OAL, UncoatedTitan USA$30.35

Titan USA TC50926 509 Stub & Regular Flute Micro End Mill, 0.02 in Dia Cutter, 0.005 in Corner Radius, 0.06 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$51.95

Titan USA TC50351 503 Stub & Regular Flute Micro End Mill, 0.06 in Dia Cutter, 0.01 in Corner Radius, 0.09 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.40

Titan USA TC50364 503 Stub & Regular Flute Micro End Mill, 0.09 in Dia Cutter, 0.015 in Corner Radius, 0.135 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.40

Titan USA TC50366 503 Stub & Regular Flute Micro End Mill, 0.093 in Dia Cutter, 0.01 in Corner Radius, 0.14 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.40

Titan USA TC50737 507 Stub & Regular Flute Micro End Mill, 0.045 in Dia Cutter, 0.01 in Corner Radius, 0.135 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$34.00

Titan USA TC50726 507 Stub & Regular Flute Micro End Mill, 0.02 in Dia Cutter, 0.005 in Corner Radius, 0.06 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$47.40

Titan USA TC50347 503 Stub & Regular Flute Micro End Mill, 0.05 in Dia Cutter, 0.005 in Corner Radius, 0.075 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.25

Titan USA TC50349 503 Stub & Regular Flute Micro End Mill, 0.05 in Dia Cutter, 0.015 in Corner Radius, 0.075 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.40

Titan USA TC50338 503 Stub & Regular Flute Micro End Mill, 0.035 in Dia Cutter, 0.01 in Corner Radius, 0.053 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.55

Titan USA TC50330 503 Stub & Regular Flute Micro End Mill, 0.015 in Dia Cutter, 0.003 in Corner Radius, 0.023 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$55.45

Titan USA TC50139 501 Stub & Regular Flute Micro End Mill, 0.1 in Dia Cutter, 0.01 in Corner Radius, 0.15 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.85

Titan USA TC50925 509 Stub & Regular Flute Micro End Mill, 0.015 in Dia Cutter, 0.003 in Corner Radius, 0.045 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$55.45

Titan USA TC50759 507 Stub & Regular Flute Micro End Mill, 0.09 in Dia Cutter, 0.015 in Corner Radius, 0.27 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.85

Titan USA TC50758 507 Stub & Regular Flute Micro End Mill, 0.09 in Dia Cutter, 0.01 in Corner Radius, 0.27 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.85

Titan USA TC50751 507 Stub & Regular Flute Micro End Mill, 0.075 in Dia Cutter, 0.005 in Corner Radius, 0.225 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$34.00

Titan USA TC50752 507 Stub & Regular Flute Micro End Mill, 0.075 in Dia Cutter, 0.01 in Corner Radius, 0.225 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$34.00

Titan USA TC50746 507 Stub & Regular Flute Micro End Mill, 0.06 in Dia Cutter, 0.01 in Corner Radius, 0.18 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.85

Titan USA TC50744 507 Stub & Regular Flute Micro End Mill, 0.05 in Dia Cutter, 0.015 in Corner Radius, 0.15 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.70

Titan USA TC50365 503 Stub & Regular Flute Micro End Mill, 0.093 in Dia Cutter, 0.005 in Corner Radius, 0.14 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.40

Titan USA TC50368 503 Stub & Regular Flute Micro End Mill, 0.1 in Dia Cutter, 0.005 in Corner Radius, 0.15 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.40

Titan USA TC50353 503 Stub & Regular Flute Micro End Mill, 0.062 in Dia Cutter, 0.005 in Corner Radius, 0.093 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.40

Titan USA TC50358 503 Stub & Regular Flute Micro End Mill, 0.075 in Dia Cutter, 0.015 in Corner Radius, 0.113 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.40

Titan USA TC50356 503 Stub & Regular Flute Micro End Mill, 0.075 in Dia Cutter, 0.005 in Corner Radius, 0.113 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.55

Titan USA TC50334 503 Stub & Regular Flute Micro End Mill, 0.03 in Dia Cutter, 0.01 in Corner Radius, 0.045 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, AlTiNTitan USA$38.55

Titan USA TC50762 507 Stub & Regular Flute Micro End Mill, 0.093 in Dia Cutter, 0.015 in Corner Radius, 0.279 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.70

Titan USA TC50747 507 Stub & Regular Flute Micro End Mill, 0.06 in Dia Cutter, 0.015 in Corner Radius, 0.18 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.85

Titan USA TC50739 507 Stub & Regular Flute Micro End Mill, 0.047 in Dia Cutter, 0.005 in Corner Radius, 0.141 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.70

Titan USA TC50138 501 Stub & Regular Flute Micro End Mill, 0.1 in Dia Cutter, 0.005 in Corner Radius, 0.15 in Length of Cut, (2) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$33.85

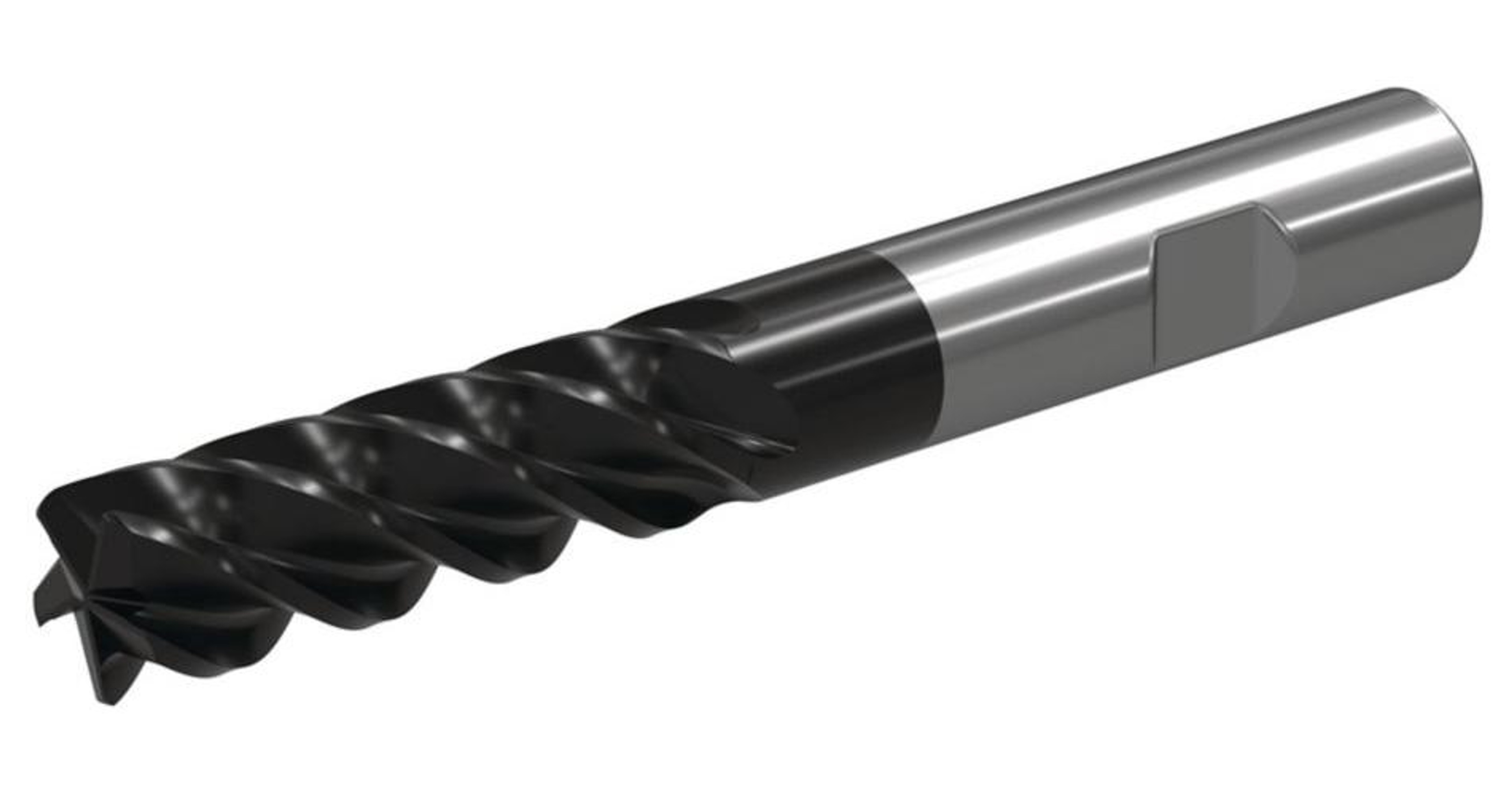

WIDIA 7008705 W511 Center Cutting Corner Radius End Mill, 0.5 in Dia Cutter, 0.01 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 4 in OAL, TiAlN CoatedWIDIA$104.73

WIDIA 7008707 W511 Center Cutting Corner Radius End Mill, 0.5 in Dia Cutter, 0.06 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 4 in OAL, TiAlN CoatedWIDIA$104.73

WIDIA 6945649 W401 Center Cutting Corner Radius End Mill, 0.18 in Dia Cutter, 0.01 in Corner Radius, 0.31 in Length of Cut, (4) Flutes, 0.18 in Dia Shank, 2 in OAL, TiAlN CoatedWIDIA$13.47

WIDIA 7008700 W501 Center Cutting Corner Radius End Mill, 0.75 in Dia Cutter, 0.12 in Corner Radius, 1.5 in Length of Cut, (5) Flutes, 0.75 in Dia Shank, 4 in OAL, TiAlN CoatedWIDIA$203.32

WIDIA 7084951 W511 Center Cutting Corner Radius End Mill, 0.5 in Dia Cutter, 0.01 in Corner Radius, 0.5 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 3.25 in OALWIDIA$89.11

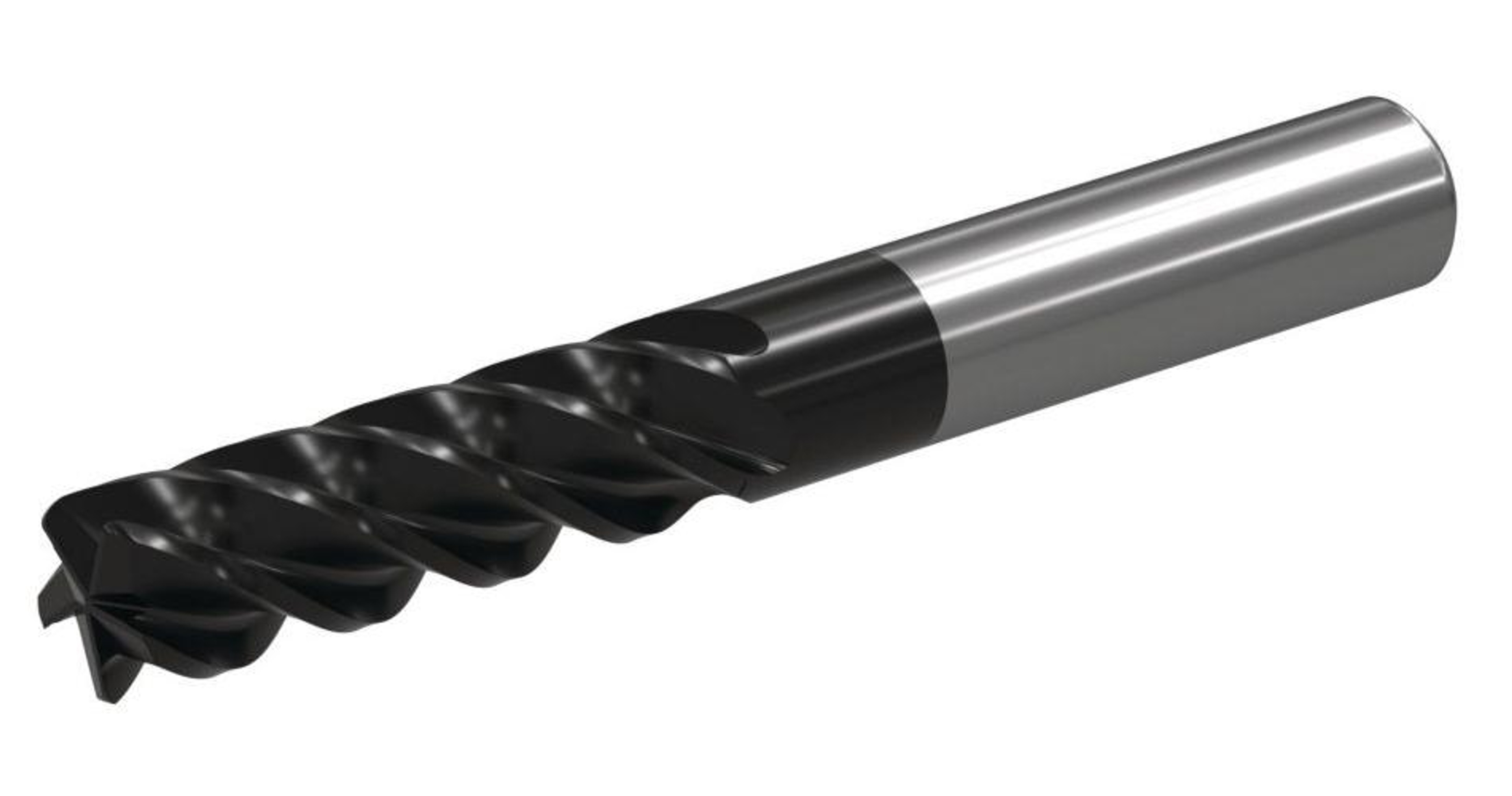

WIDIA 7084889 W511 Center Cutting Corner Radius End Mill, 0.5 in Dia Cutter, 0.12 in Corner Radius, 0.5 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 3.25 in OALWIDIA$85.47

WIDIA 7084887 W511 Center Cutting Corner Radius End Mill, 0.5 in Dia Cutter, 0.06 in Corner Radius, 0.5 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 3.25 in OALWIDIA$85.47

WIDIA 7008708 W511 Center Cutting Corner Radius End Mill, 0.5 in Dia Cutter, 0.09 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 4 in OAL, TiAlN CoatedWIDIA$104.73

WIDIA 7008710 W501 Center Cutting Corner Radius End Mill, 0.62 in Dia Cutter, 1.25 in Length of Cut, (5) Flutes, 0.62 in Dia Shank, 3.5 in OAL, AlTiNWIDIA$129.33

Choosing the Right Corner Radius & Corner Chamfer End Mills

When it comes to precision milling, selecting the right end mill is crucial for achieving the desired finish and performance. Corner radius end mills and corner chamfer end mills are essential tools for machinists and manufacturers who need to create smooth, rounded edges or chamfered corners on their workpieces. Understanding the differences and applications of these tools will help you make an informed purchasing decision.

Corner radius end mills have a square nose with slightly rounded corners, which helps in reducing chipping and extending tool life. They are ideal for applications that require a smooth transition between the tool and the workpiece. On the other hand, corner chamfer end mills feature an angled cutting edge, making them perfect for milling shoulders that require a chamfered corner. These tools are essential for creating beveled edges and ensuring a clean finish.

Material Compatibility: Ensure the end mill is suitable for the material you are working with, such as steel, aluminum, or composites.
Tool Coating: Consider coatings like TiN, TiCN, or AlTiN for enhanced durability and performance.
Corner Radius or Chamfer Size: Choose the appropriate size based on the specific requirements of your project.
Flute Count: More flutes can provide a smoother finish, while fewer flutes offer better chip clearance.
Shank Diameter: Match the shank diameter to your machine's collet or chuck for optimal stability.
Overall Length: Ensure the tool's length is suitable for the depth of cut required.

By considering these factors, you can select the right corner radius or corner chamfer end mill for your specific needs. Whether you're working on a complex project or a simple task, having the right tool will ensure precision and efficiency.

Ready to enhance your milling operations? Explore our wide selection of corner radius and corner chamfer end mills today and find the perfect tool for your next project. Shop Now and experience the difference in quality and performance.
