Corner Radius & Corner Chamfer End Mills

Corner radius end mills, with their square nose and slightly rounded corners, are essential for achieving smooth transitions and reducing tool wear in your projects. These tools enhance performance by minimizing chipping and extending tool life, making them ideal for high-speed machining. On the other hand, corner chamfer end mills, featuring an angled cutting edge, are perfect for milling shoulders that require a chamfered corner, ensuring precision and clean finishes. Both types are indispensable for industrial workers seeking efficiency and reliability in their machining tasks.

Sort By

Titan USA TC20991 Milling 4 Flute End Mill, 0.375 in Dia Cutter, 0.01 in Corner Radius, 1 in Length of Cut, (4) Flutes, 0.375 in Dia Shank, 2.5 in OAL, ALCRO-MaxTitan USA$44.30

Titan USA TC20989 Milling 4 Flute End Mill, 0.25 in Dia Cutter, 0.02 in Corner Radius, 0.75 in Length of Cut, (4) Flutes, 0.25 in Dia Shank, 2.5 in OAL, ALCRO-MaxTitan USA$29.50

Titan USA TC20972 Milling 4 Flute End Mill, 0.3125 in Dia Cutter, 0.01 in Corner Radius, 0.4375 in Length of Cut, (4) Flutes, 0.3125 in Dia Shank, 2 in OAL, ALCRO-MaxTitan USA$35.90

Titan USA TC20969 Milling 4 Flute End Mill, 0.25 in Dia Cutter, 0.02 in Corner Radius, 0.375 in Length of Cut, (4) Flutes, 0.25 in Dia Shank, 2 in OAL, ALCRO-MaxTitan USA$26.70

Titan USA TC20968 Milling 4 Flute End Mill, 0.25 in Dia Cutter, 0.01 in Corner Radius, 0.375 in Length of Cut, (4) Flutes, 0.25 in Dia Shank, 2 in OAL, ALCRO-MaxTitan USA$26.70

Titan USA TC74672 Extra Long Length Single End End Mill With Internal Coolant, 1 in Dia Cutter, 1/8 in Corner Radius, 3 in Length of Cut, 4 Flutes, 1 in Dia Shank, 6 in OAL, AlTiN CoatedTitan USA$358.25

Titan USA TC74678 Extra Long Length Single End End Mill With Internal Coolant, 1 in Dia Cutter, 0.09 in Corner Radius, 4 in Length of Cut, 4 Flutes, 1 in Dia Shank, 7 in OAL, AlTiN CoatedTitan USA$382.37

Titan USA TC15201 152 General Purpose End Mill, 0.125 in Dia Cutter, 0.01 in Corner Radius, 0.25 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedTitan USA$9.60

Titan USA TC13358 133 Variable Index Chipbreaker End Mill, 0.5 in Dia Cutter, 0.015 in Corner Radius, 1.25 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 3 in OAL, ALCRO-MaxTitan USA$75.00

Titan USA TC13338 133 Variable Index Chipbreaker End Mill, 0.625 in Dia Cutter, 0.06 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.625 in Dia Shank, 3.5 in OAL, ALCRO-MaxTitan USA$128.95

Titan USA TC13353 133 Variable Index Chipbreaker End Mill, 0.5 in Dia Cutter, 0.015 in Corner Radius, 1 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 3 in OAL, ALCRO-MaxTitan USA$73.45

Titan USA TC13346 133 Variable Index Chipbreaker End Mill, 0.75 in Dia Cutter, 0.25 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.75 in Dia Shank, 4 in OAL, ALCRO-MaxTitan USA$178.95

Titan USA TC13356 133 Variable Index Chipbreaker End Mill, 0.5 in Dia Cutter, 0.09 in Corner Radius, 1 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 3 in OAL, ALCRO-MaxTitan USA$73.45

Titan USA TC13351 133 Variable Index Chipbreaker End Mill, 1 in Dia Cutter, 0.19 in Corner Radius, 2 in Length of Cut, (5) Flutes, 1 in Dia Shank, 4 in OAL, ALCRO-MaxTitan USA$328.20

Titan USA TC13426 134 Variable Index Chipbreaker End Mill, 1 in Dia Cutter, 0.06 in Corner Radius, 3 in Length of Cut, (5) Flutes, 1 in Dia Shank, 6 in OAL, ALCRO-MaxTitan USA$438.05

Titan USA TC13360 133 Variable Index Chipbreaker End Mill, 0.5 in Dia Cutter, 0.06 in Corner Radius, 1.25 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 3 in OAL, ALCRO-MaxTitan USA$75.00

Titan USA TC13354 133 Variable Index Chipbreaker End Mill, 0.5 in Dia Cutter, 0.03 in Corner Radius, 1 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 3 in OAL, ALCRO-MaxTitan USA$73.45

Titan USA TC13348 133 Variable Index Chipbreaker End Mill, 1 in Dia Cutter, 0.06 in Corner Radius, 2 in Length of Cut, (5) Flutes, 1 in Dia Shank, 4 in OAL, ALCRO-MaxTitan USA$328.20

Titan USA TC15207 152 General Purpose End Mill, 0.1875 in Dia Cutter, 0.015 in Corner Radius, 0.375 in Length of Cut, (3) Flutes, 0.1875 in Dia Shank, 2 in OAL, UncoatedTitan USA$15.05

Titan USA TC13349 133 Variable Index Chipbreaker End Mill, 1 in Dia Cutter, 0.09 in Corner Radius, 2 in Length of Cut, (5) Flutes, 1 in Dia Shank, 4 in OAL, ALCRO-MaxTitan USA$328.20

Titan USA TC13365 133 Variable Index Chipbreaker End Mill, 0.625 in Dia Cutter, 0.09 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.625 in Dia Shank, 3.5 in OAL, ALCRO-MaxTitan USA$138.30

Titan USA TC13366 133 Variable Index Chipbreaker End Mill, 0.625 in Dia Cutter, 0.12 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.625 in Dia Shank, 3.5 in OAL, ALCRO-MaxTitan USA$138.30

Titan USA TC13362 133 Variable Index Chipbreaker End Mill, 0.5 in Dia Cutter, 0.12 in Corner Radius, 1.25 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 3 in OAL, ALCRO-MaxTitan USA$75.00

Titan USA TC15216 152 General Purpose End Mill, 0.375 in Dia Cutter, 0.01 in Corner Radius, 0.625 in Length of Cut, (3) Flutes, 0.375 in Dia Shank, 2 in OAL, UncoatedTitan USA$30.95

Titan USA TC13344 133 Variable Index Chipbreaker End Mill, 0.75 in Dia Cutter, 0.12 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.75 in Dia Shank, 4 in OAL, ALCRO-MaxTitan USA$178.95

Titan USA TC13341 133 Variable Index Chipbreaker End Mill, 0.75 in Dia Cutter, 0.03 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.75 in Dia Shank, 4 in OAL, ALCRO-MaxTitan USA$178.95

Titan USA TC13343 133 Variable Index Chipbreaker End Mill, 0.75 in Dia Cutter, 0.09 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.75 in Dia Shank, 4 in OAL, ALCRO-MaxTitan USA$178.95

Titan USA TC15205 152 General Purpose End Mill, 0.1875 in Dia Cutter, 0.005 in Corner Radius, 0.375 in Length of Cut, (3) Flutes, 0.1875 in Dia Shank, 2 in OAL, UncoatedTitan USA$15.05

Titan USA TC13336 133 Variable Index Chipbreaker End Mill, 0.5 in Dia Cutter, 0.12 in Corner Radius, 1.25 in Length of Cut, (5) Flutes, 0.5 in Dia Shank, 3 in OAL, ALCRO-MaxTitan USA$67.70

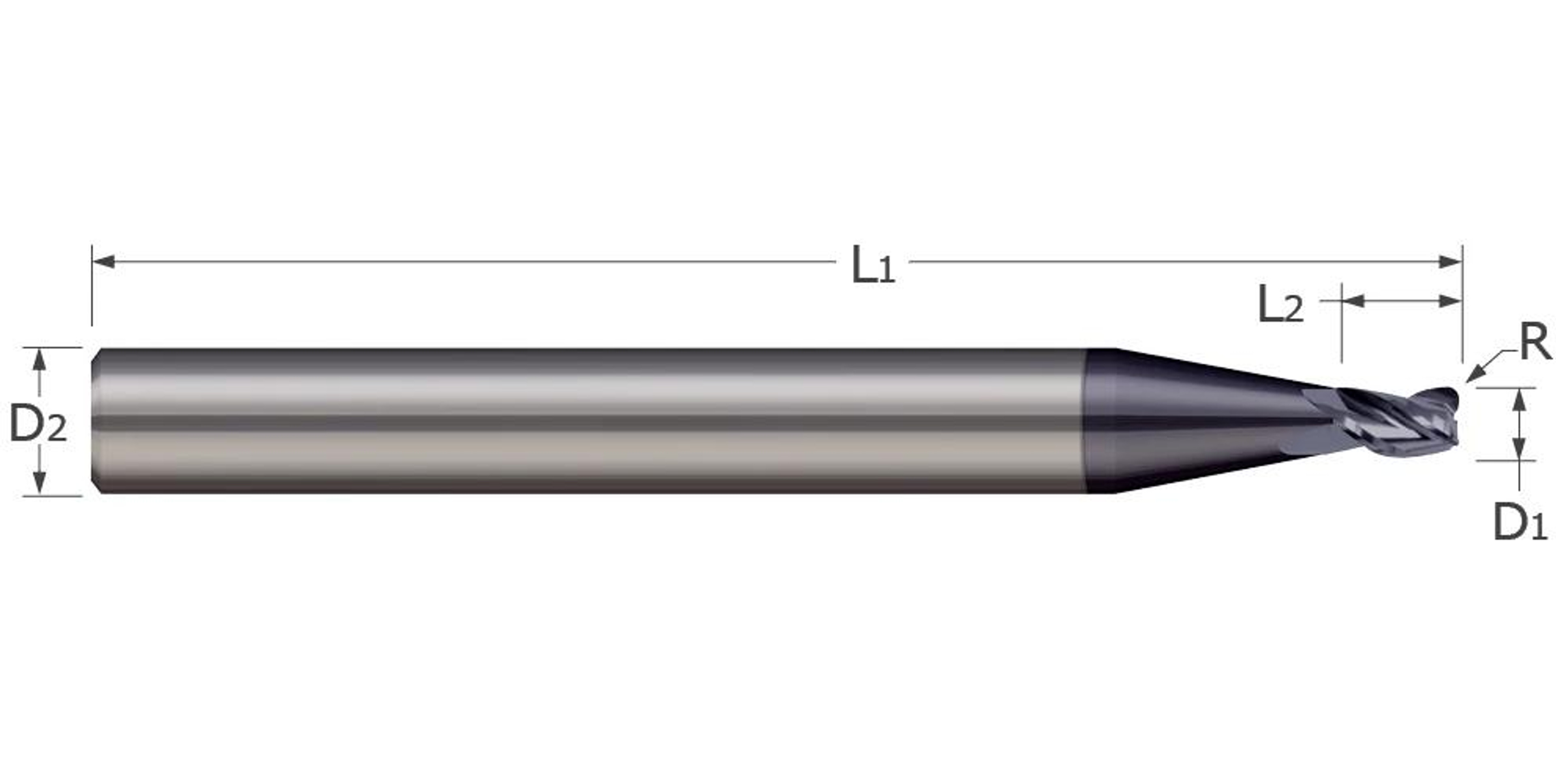

MICRO 100 MEF-078-250-3-005K Long Reach - Stub Flute Corner Radius End Mill, 0.0781 in Dia Cutter, 0.005 in Corner Radius, 0.117 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, NACROMICRO 100$41.80

MICRO 100 MEF-075-600-3-005K Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.005 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, NACROMICRO 100$49.10

MICRO 100 MEF-078-250-3-010 Long Reach - Stub Flute Corner Radius End Mill, 0.0781 in Dia Cutter, 0.01 in Corner Radius, 0.117 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedMICRO 100$37.40

MICRO 100 MEF-075-900-3-010 Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.01 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, UncoatedMICRO 100$53.60

MICRO 100 MEF-078-250-3-005 Long Reach - Stub Flute Corner Radius End Mill, 0.0781 in Dia Cutter, 0.005 in Corner Radius, 0.117 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedMICRO 100$37.40

MICRO 100 MEF-078-117-3-015 Stub Flute Corner Radius End Mill, 0.0781 in Dia Cutter, 0.015 in Corner Radius, 0.117 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedMICRO 100$31.30

MICRO 100 MEF-075-400-3-015K Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.015 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, NACROMICRO 100$44.20

MICRO 100 MEF-075-900-3-015K Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.015 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, NACROMICRO 100$58.00

MICRO 100 MEF-075-900-3-015 Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.015 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, UncoatedMICRO 100$53.60

MICRO 100 MEF-075-900-3-010K Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.01 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, NACROMICRO 100$58.00

MICRO 100 MEF-075-900-3-005 Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.005 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, UncoatedMICRO 100$53.60

MICRO 100 MEF-075-600-3-015K Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.015 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, NACROMICRO 100$49.10

MICRO 100 MEF-075-600-3-015 Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.015 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, UncoatedMICRO 100$44.70

MICRO 100 MEF-075-600-3-005 Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.005 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, UncoatedMICRO 100$44.70

MICRO 100 MEF-078-117-3-005K Stub Flute Corner Radius End Mill, 0.0781 in Dia Cutter, 0.005 in Corner Radius, 0.117 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, NACROMICRO 100$35.95

MICRO 100 MEF-078-117-3-005 Stub Flute Corner Radius End Mill, 0.0781 in Dia Cutter, 0.005 in Corner Radius, 0.117 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 1.5 in OAL, UncoatedMICRO 100$31.30

MICRO 100 MEF-075-600-3-010K Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.01 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, NACROMICRO 100$49.10

MICRO 100 MEF-075-600-3-010 Long Reach - Stub Flute Corner Radius End Mill, 0.075 in Dia Cutter, 0.01 in Corner Radius, 0.113 in Length of Cut, (3) Flutes, 0.125 in Dia Shank, 2 in OAL, UncoatedMICRO 100$44.70

Titan USA TC13317 133 Variable Index Chipbreaker End Mill, 0.1875 in Dia Cutter, 0.03 in Corner Radius, 0.5625 in Length of Cut, (5) Flutes, 0.1875 in Dia Shank, 2 in OAL, ALCRO-MaxTitan USA$26.45

Titan USA TC13350 133 Variable Index Chipbreaker End Mill, 1 in Dia Cutter, 0.12 in Corner Radius, 2 in Length of Cut, (5) Flutes, 1 in Dia Shank, 4 in OAL, ALCRO-MaxTitan USA$328.20

Titan USA TC13345 133 Variable Index Chipbreaker End Mill, 0.75 in Dia Cutter, 0.19 in Corner Radius, 1.625 in Length of Cut, (5) Flutes, 0.75 in Dia Shank, 4 in OAL, ALCRO-MaxTitan USA$178.95

Choosing the Right Corner Radius & Corner Chamfer End Mills

When it comes to precision milling, selecting the right end mill is crucial for achieving the desired finish and performance. Corner radius end mills and corner chamfer end mills are essential tools for machinists and manufacturers who need to create smooth, rounded edges or chamfered corners on their workpieces. Understanding the differences and applications of these tools will help you make an informed purchasing decision.

Corner radius end mills have a square nose with slightly rounded corners, which helps in reducing chipping and extending tool life. They are ideal for applications that require a smooth transition between the tool and the workpiece. On the other hand, corner chamfer end mills feature an angled cutting edge, making them perfect for milling shoulders that require a chamfered corner. These tools are essential for creating beveled edges and ensuring a clean finish.

Material Compatibility: Ensure the end mill is suitable for the material you are working with, such as steel, aluminum, or composites.
Tool Coating: Consider coatings like TiN, TiCN, or AlTiN for enhanced durability and performance.
Corner Radius or Chamfer Size: Choose the appropriate size based on the specific requirements of your project.
Flute Count: More flutes can provide a smoother finish, while fewer flutes offer better chip clearance.
Shank Diameter: Match the shank diameter to your machine's collet or chuck for optimal stability.
Overall Length: Ensure the tool's length is suitable for the depth of cut required.

By considering these factors, you can select the right corner radius or corner chamfer end mill for your specific needs. Whether you're working on a complex project or a simple task, having the right tool will ensure precision and efficiency.

Ready to enhance your milling operations? Explore our wide selection of corner radius and corner chamfer end mills today and find the perfect tool for your next project. Shop Now and experience the difference in quality and performance.
