3M 7100009589 85 Series 4-Way Multi-Mold Resin Splice Kit, 1 kV, 7/16 in Dia Cable, 4 AWG, 8 AWG Conductor, 5 in L Splice, Resin

3M, 7100009589, Splice Kit, 4-Way Multi-Mold Resin, Series: 85 Series, 1 kV, Non-Shielded Cable, 7/16 in Diameter Cable, 4 AWG, 8 AWG Conductor, 5 in Splice Length, Split Bolt H Tap or C Compression Connector, 90 to 130 deg C, Resin, Green

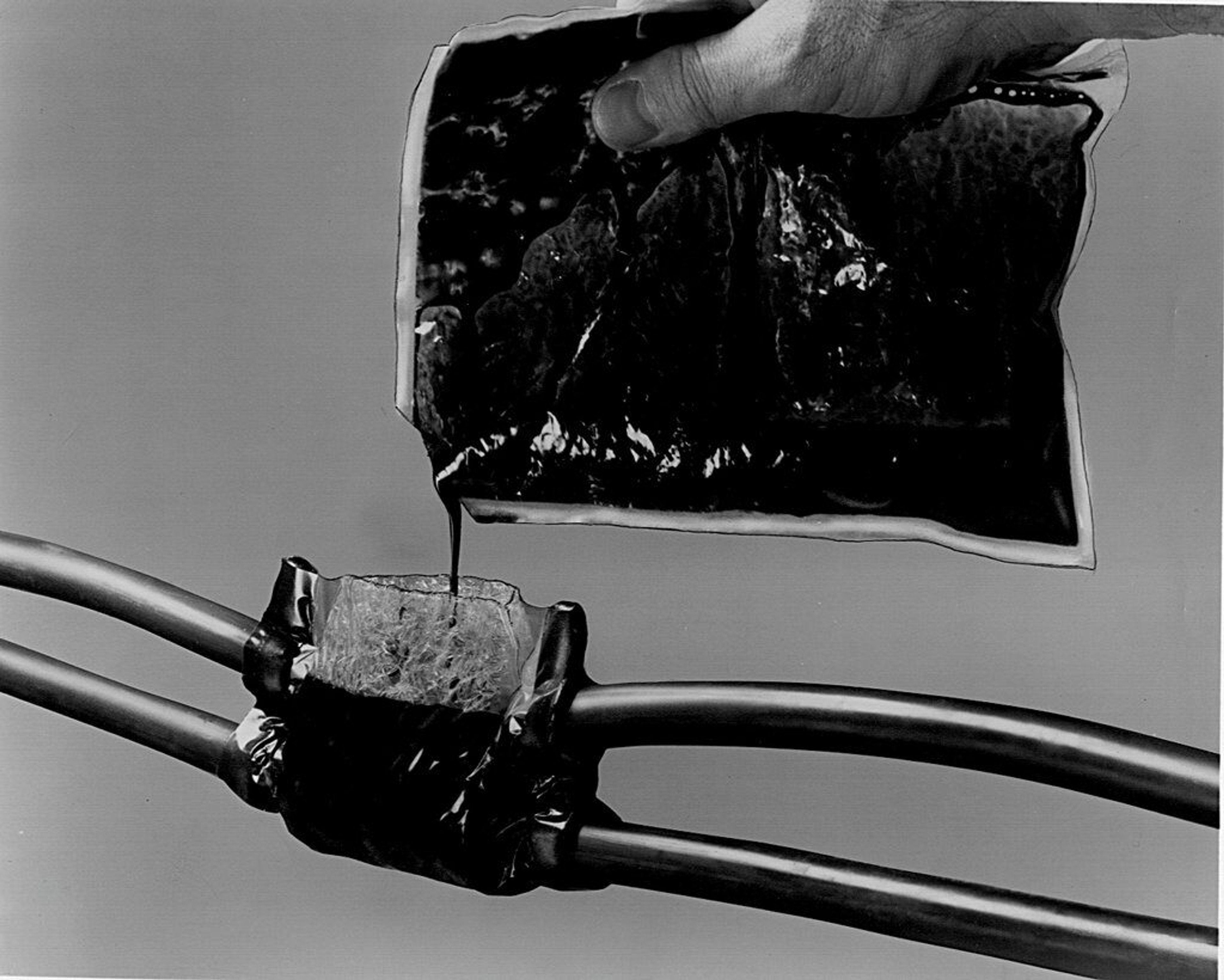

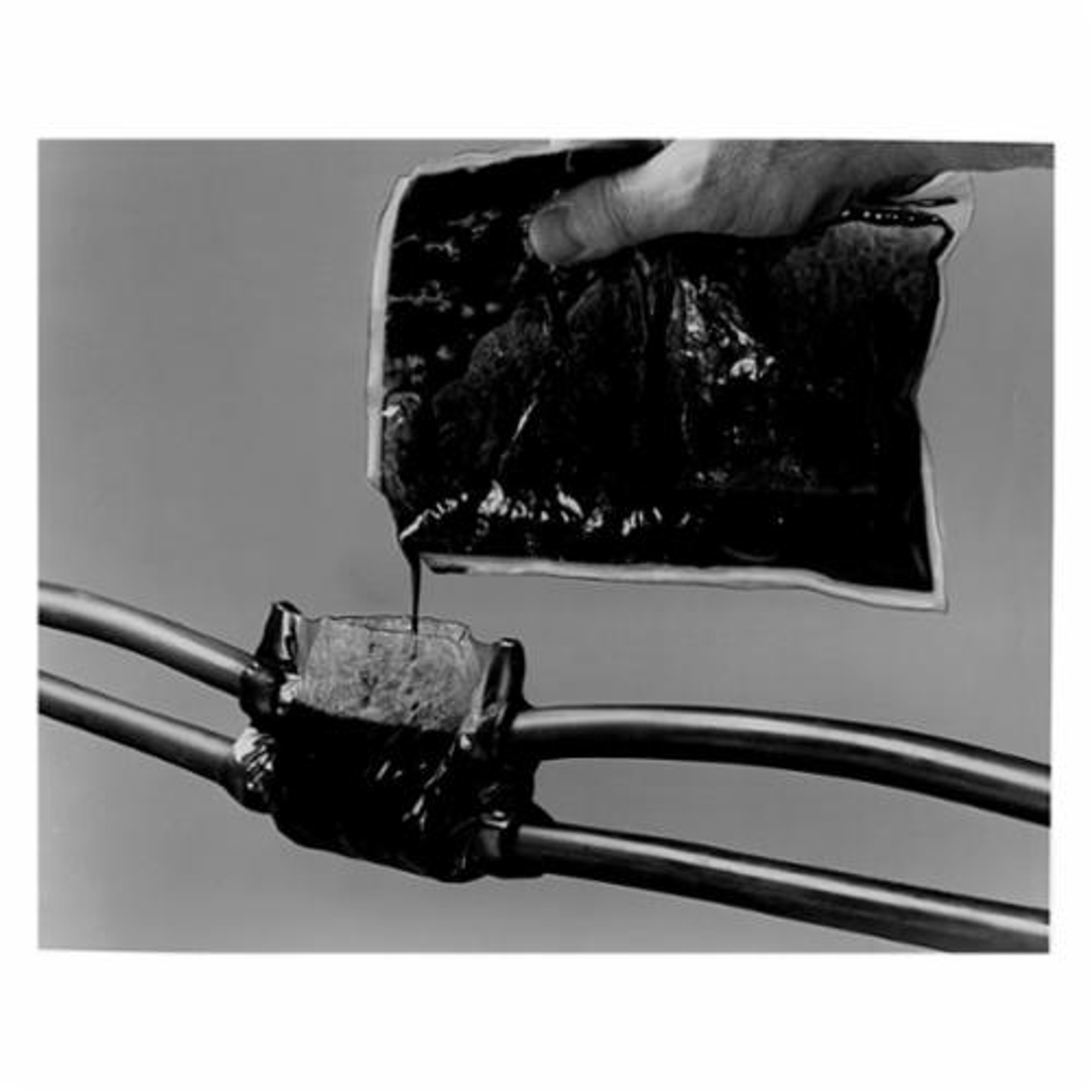

3M Scotchcast multi mold resin splice kit 85 series includes a flexible film plastic mold, electrical insulating resin 2104, pressure sensitive adhesive film sealing strip and a comprehensive instruction booklet. Using split bolts, h tap or C-tap compression connectors, it provides inline, wye, X, butt and dead end splice configurations. It has a flexible film plastic mold with a built-in porous spacer web for ensuring proper thickness of insulating compound. The splice kit is perfect for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig ins.
